Automatic locking screw machine SF-4220-2Z (vacuum suction) mechanical parameters |
1. Product scope of application: |

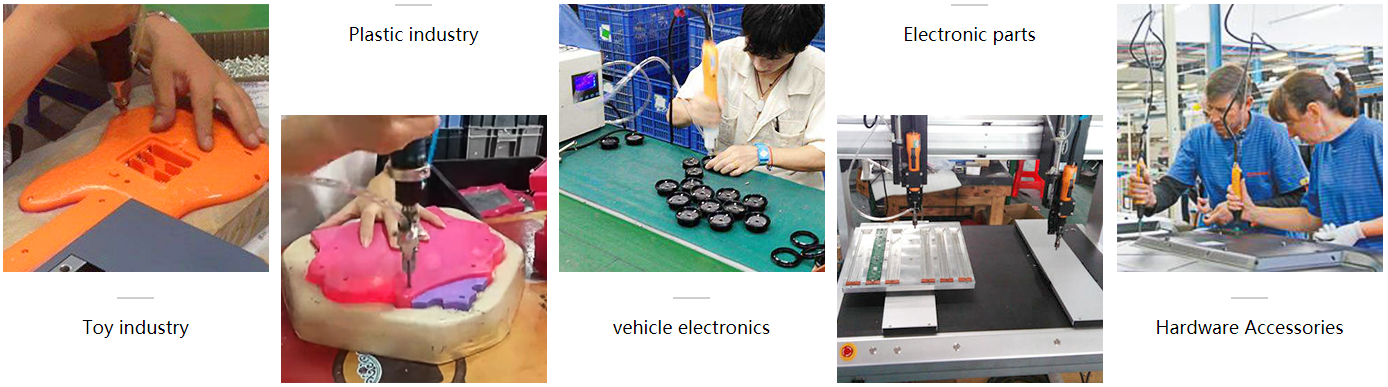

Applicable to: toys, small home appliances, electronic products, instrumentation, lighting, electronics, plastics, alloys, communication equipment, audio and other lock screw technology. |
|
|
|
|
|
|
|
|
|
2. Features: |
*The vacuum suction screw structure can realize the standard surface structure of the product lock screw position and the locking function of the meson screw |
*Dual-mode independently locks two (or the same kind of screws) products at the same time to achieve a higher efficiency and higher working mode |
*Support leak lock/sliding tooth/floating tooth alarm function |
*Support the adjustment function |
*Support automatic induction start operation function |
*Support servo electric batch speed and torque independent adjustment function |
*Support manual drag adjustment to lock screw point adjustment function |
|
|
|
|
|
|
|
|
|
3. Technical parameters: |
Locking screw range | X200*Y1/420*135mm X200*Y2/420*Z135mm(X*Y*Z/X*Y*Z) |
Screwing time | 1.0~1.5 seconds/grain |
Repeatability | +/-0.03mm |
Program recording mode | 15 groups, 99 POINTS per group |
Electric batch method | Precision Servo Motor (Mitsubishi/Delta) |
Feeding method | Turntable screw feeding method (own brand) |
Control System | MCU + touch screen control system |
Motor system | Precision stepping (closed loop) motor (domestic brand) |
Transfer method | Synchronous belt/precision linear guide (Taiwan Shangyin) |
Input power | 220V/50HZ |
Working air source | 0.4~0.6MPA |
Edit mode | Hand drag type & teaching type |
Working temperature | 5~40 degrees |
Working environment humidity | 20-90% |
Applicable screw specifications | All types of screws |
Applicable lock screw size | M1.0~M4 (the screw length does not exceed 16MM) can be customized if it exceeds the range |
Mechanical dimensions | 970*820*900mm |
Machine weight | 100KG |
