| Automatic screw machine SF-4245-1Z (dropping type) mechanical parameters |
1. Product scope of application: |

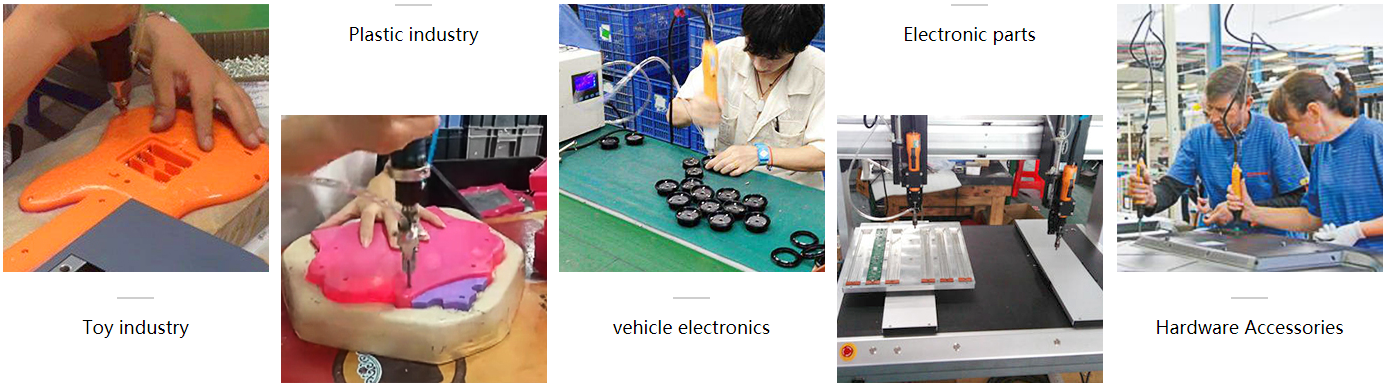

Applicable to: toys, small household appliances, electronic products, instrumentation, lighting, electronics, plastics, alloys, communication equipment, audio and other lock screw technology. |
|
|
|
|
|
|
|
|
|
|
|
2. Features: |
*Dropping type screw taking structure can realize the locking function of the standard surface structure of the product locking screw position |
*Single mode realizes the working mode of larger size products |
*Support leak lock/sliding tooth/floating tooth alarm function |
*Support the adjustment function |
*Support automatic induction start operation function |
*Support servo electric batch speed and torque independent adjustment function |
*Support manual drag adjustment to lock screw point adjustment function |
|
|
|
|
|
|
|
|
|
|
|
3. Technical parameters: |
| Locking screw range | X450*Y1/420*Z135mm(X*Y*Z) |
| Screwing time | 0.8~1.2 seconds/grain |
| Repeatability | +/-0.03mm |
| Program recording mode | 15 groups, 99 POINTS per group |
| Electric batch method | Precision Servo Motor (Mitsubishi/Delta) |
| Feeding method | Direct screw feeding method (own brand) |
| Control System | MCU + touch screen control system |
| Motor system | Precision stepping (closed loop) motor (domestic brand) |
| transfer method | Synchronous belt/precision linear guide (Taiwan Shangyin) |
| Input power | 220V/50HZ |
| Working air source | 0.4~0.6MPA |
| Edit mode | Hand drag type & teaching type |
| Working temperature | 5~40 degrees |
| Working environment humidity | 20-90% |
| Applicable screw specifications | PB/KB head type screws (including stainless steel screws) with meson type excluded |
| Applicable lock screw size | M1.5~M4 (the length of the screw does not exceed 16MM) The screw length ratio must be 1:1.5 if it exceeds the range. |
| Feeding method | Long-lasting magnetic (vacuum suction) feeding method |
| Mechanical dimensions | 810*720*900mm(L*M*H) |
| Machine weight | 80KG |
