1. Product application scope

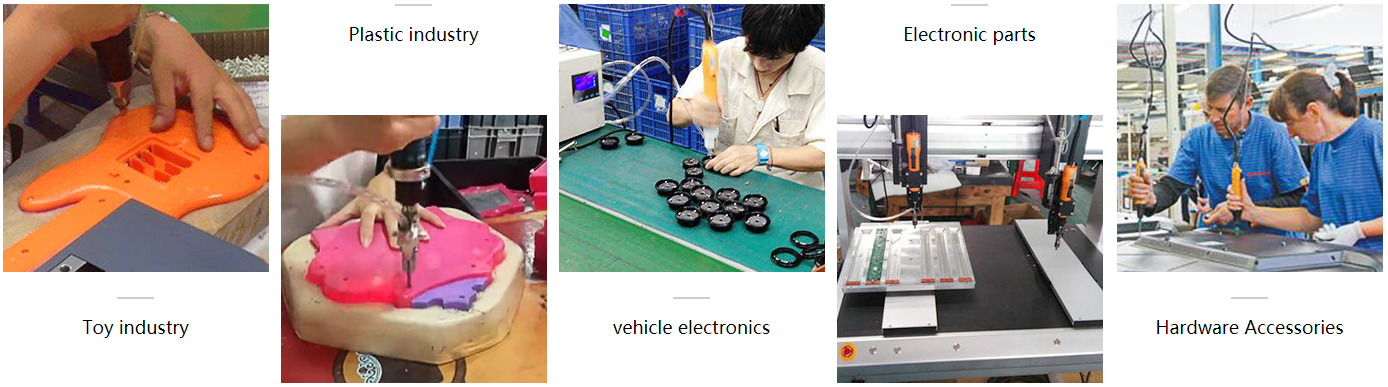

Applicable to: toys, small household appliances, electronic products, instrumentation, lighting, electronics, plastics, alloys, communication equipment, audio and other lock screw technology.

2. Features:

*Long-term magnetic suction screw structure, which can realize the locking function of the deep hole/bevel screw/meson screw of the product lock screw position

*Dual-mode alternately locks two screws of different specifications at the same time (or operates separately) to replace the product to achieve high-efficiency work mode

*Support leak lock/sliding tooth/floating tooth alarm function

*Support the adjustment function

*Support automatic induction start operation function

*Support servo electric batch speed and torque independent adjustment function

*Support manual drag adjustment to lock screw point adjustment function

3. Technical parameters:

Locking screw range

X210*Y1/5000/Z135mm/X210*Y2/500/Z135mm(X*Y*Z*X*Y*Z)

Screwing time

1.0~1.5 seconds/grain

Repeatability

+/-0.03mm

Program recording mode

15 groups, 99 POINTS per group

Electric batch method

Precision Servo Motor (Mitsubishi/Delta)

Feeding method

Turntable screw feeding method (own brand)

Control System

MCU + touch screen control system

Motor system

Precision stepping (closed loop) motor (domestic brand)

transfer method

Synchronous belt/precision linear guide (Taiwan Shangyin)

Input power

220V/50HZ

Working air source

0.4~0.6MPA

Edit mode

Hand drag type & teaching type

Working temperature

5~40 degrees

Working environment humidity

20-90%

Applicable screw specifications

Cross recessed (flat head/round head/meson head) screws (except stainless steel)

Applicable lock screw size

M1.5~M4 (the screw length does not exceed 16MM) can be customized if it exceeds the range

Mechanical dimensions

950*720*900mm(L*M*H)

Machine weight

100KG
