1. Product scope of application:

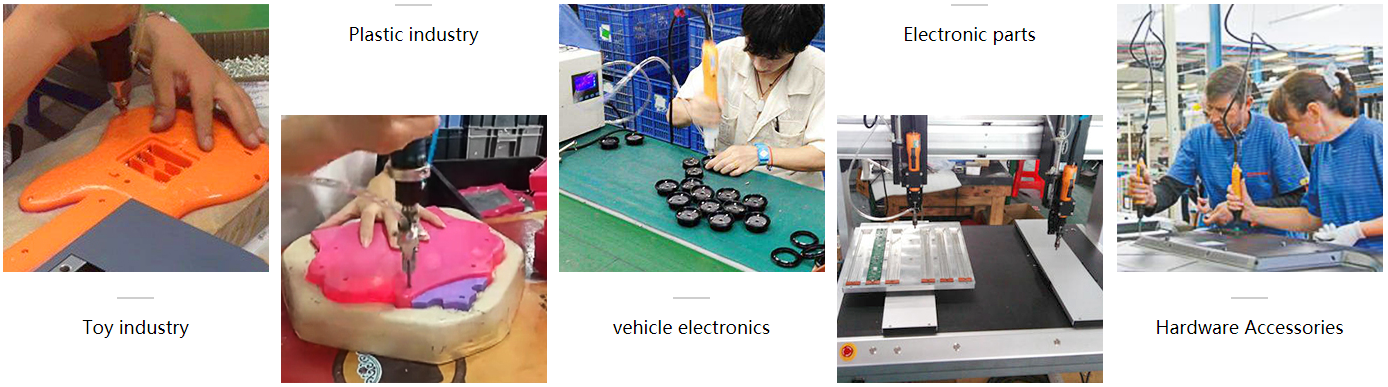

Applicable to: toys, small home appliances, electronic products, instrumentation, lighting, electronics, plastics, alloys, communication equipment, audio and other lock screw technology.

2. Features:

*Dropping type screw taking structure can realize the locking function of the standard surface structure of the product locking screw position

*Double-mode left and right alternately replace products to achieve high efficiency working mode

*Support leak lock/sliding tooth/floating tooth alarm function

*Support the automatic pickup function of the front and rear manipulator

*Support servo electric batch speed and torque independent adjustment function

*Support manual drag adjustment to lock screw point adjustment function

*The vertical belt seat does not need to add another work surface, and the working position can be adjusted flexibly

3. Technical parameters:

Locking screw range

X260*Y1/700/Y2/700*Z135mm(X*Y*Y*Z)

Screwing time

0.8~1.2 seconds/grain

Repeatability

+/-0.03mm

Program recording mode

15 groups, 99POINTS per group

Electric batch method

Precision Servo Motor (Mitsubishi/Delta)

Feeding method

Direct screw feeding method (own brand)

Control System

MCU + touch screen control system

Motor system

Precision stepping (closed loop) motor (domestic brand)

transfer method

Synchronous belt/precision linear guide (Taiwan Shangyin)

Input power

220V/50HZ

Working air source

0.4~0.6MPA

Edit mode

Hand drag & teaching

Working temperature

5~40 degrees

Working environment humidity

20-90%

Applicable screw specifications

PB/KB head type screws (including stainless steel screws) with meson type excluded

Applicable lock screw size

M1.5~M4 (the length of the screw does not exceed 16MM) The screw length ratio must be 1:1.5 if it exceeds the range.

Mechanical dimensions

1090*1300*1750mm(L*M*H)

Machine weight

130KG
