1. Product scope of application:

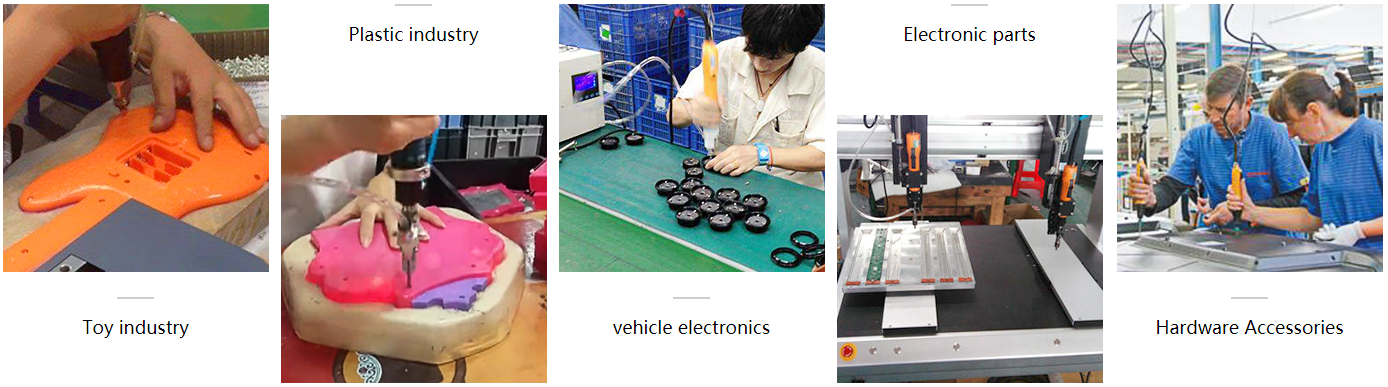

It is suitable for screw locking of various products, such as toys, security, small household appliances, electronic products, instrumentation, LED lamps, communication equipment, audio and other locking screw technology.

2. Features:

*Direct supply type (Blowing type) screw supply structure to realize fast feeding and automatic screw locking

*Single person can work efficiently, saving a labor

*The left hand does not need to take the screws frequently, it can be used to hold the product and improve the operation accuracy

*Cleaner, no longer direct contact with screws, to avoid secondary pollution and rust caused by hand contact

*More efficient, 55-60 screws can be locked in 1 minute, the efficiency is more than doubled

*Screws are automatically arranged for feeding, automatic screening of special-shaped screws, automatic replenishment of empty materials, and automatic alarm when there is no material

3. Technical parameters:

Locking screw range

No fixture required, easy operation at any position in 360 degrees

Screwing time

0.8~1.0 seconds/piece

HMI

Display and adjust various parameters, with counting function, better control of production capacity

Feeder capacity

Standard screws above 5000

Control System

MCU + touch screen control system

Motor system

Brand precision motor

Power

100W

Input power

AC 220V/50HZ

Working air source

0.4~0.6MPA

Applicable Products

Products with screw counterbore depth <=300mm can="" be="" easily="" locked="">

Universal range

The screws can be common between the same products, and the diameter tolerance of different screws and nuts can be common within 0.3mm

Working temperature

5~40 degrees

Working environment humidity

20-90%

Applicable lock screw size

M1.4~M5 (Screw length does not exceed 16MM)

Feeding method

Blowing feeding method

Mechanical dimensions

420*220*280mm(L*M*H)

Machine weight

12KG
