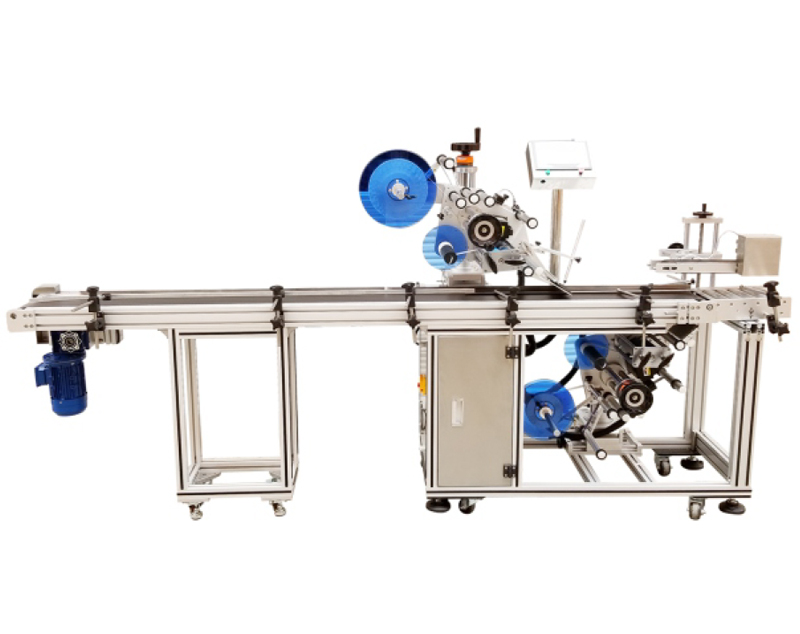

Automatic flat labeling machine LL-T831 mechanical parameters | |
1. Basic use: | |
Suitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons, etc. The replacement of the labeling mechanism is suitable for labeling on uneven surfaces, and is widely used for flat labeling of large products , Labeling of flat objects with a wide range of specifications. Optional coding machine or inkjet printer to the labeling head can be realized on the label to print the production date, batch number and printing bar code and other information. Optional inkjet printer to conveyor belt can be used to print production date, batch number, barcode and other information on the product before or after labeling. | |
2. Technical parameters(The following are the technical parameters of the standard model, other special requirements and functions can be customized) | |
Labeling accuracy | ±1.0mm (Does not contain product and label errors) |
Labeling speed | 40~80 Pcs/minute(related to product size) |
Applicable product size | length:40mm~400mm width:40mm~200mm height:0.5mm~150mm |
Applicable label size | length:6mm~300mm Bottom paper width:15mm~130mm |
Overall size | About 1920mm×830mm×1350mm ( length×width×height ) |
Applicable power supply | 220V/50HZ |
Total Weight | About 188.5Kg |
Applicable label inner diameter | φ76mm |
Applicable label outer diameter | φ300mm |
Scope of application | ||
